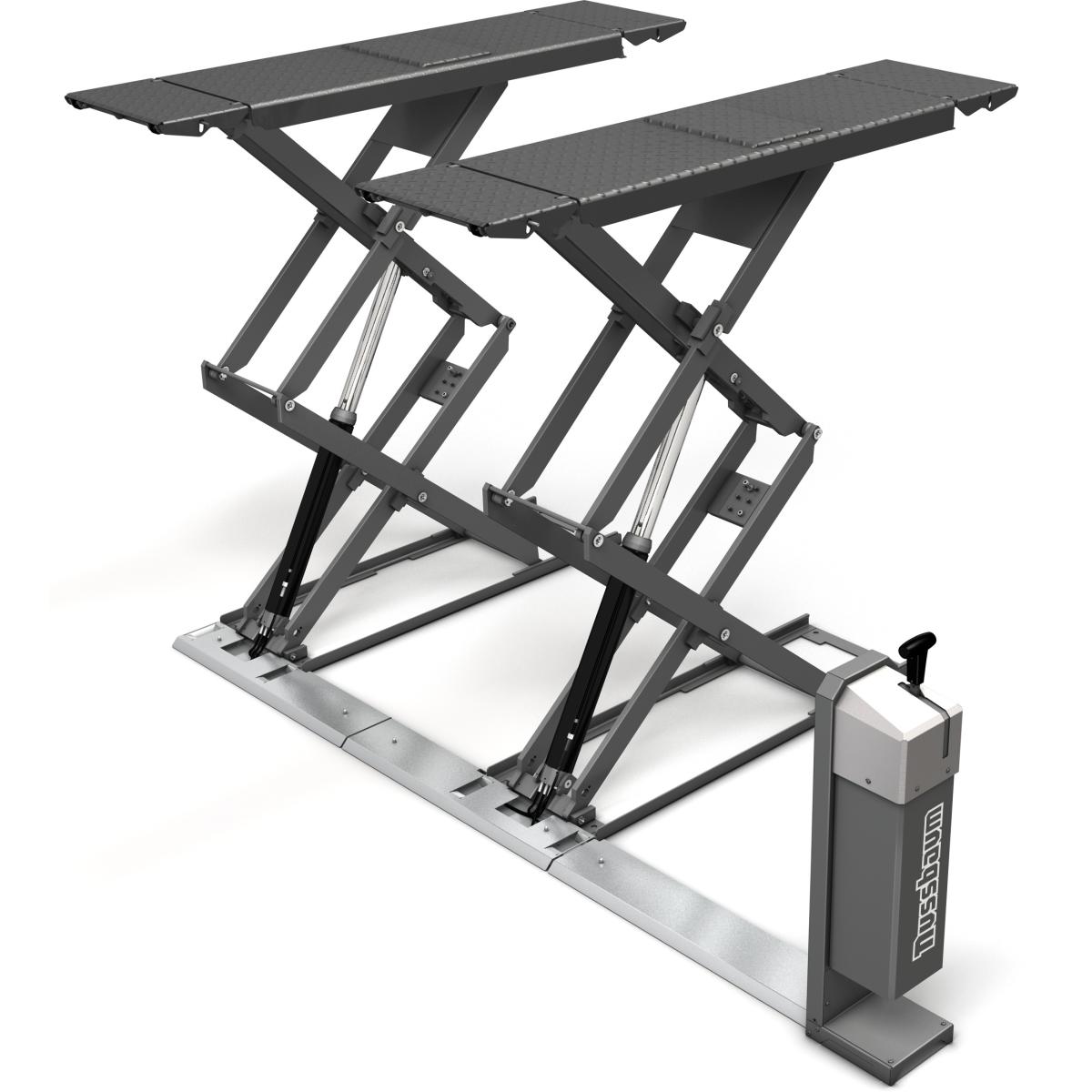

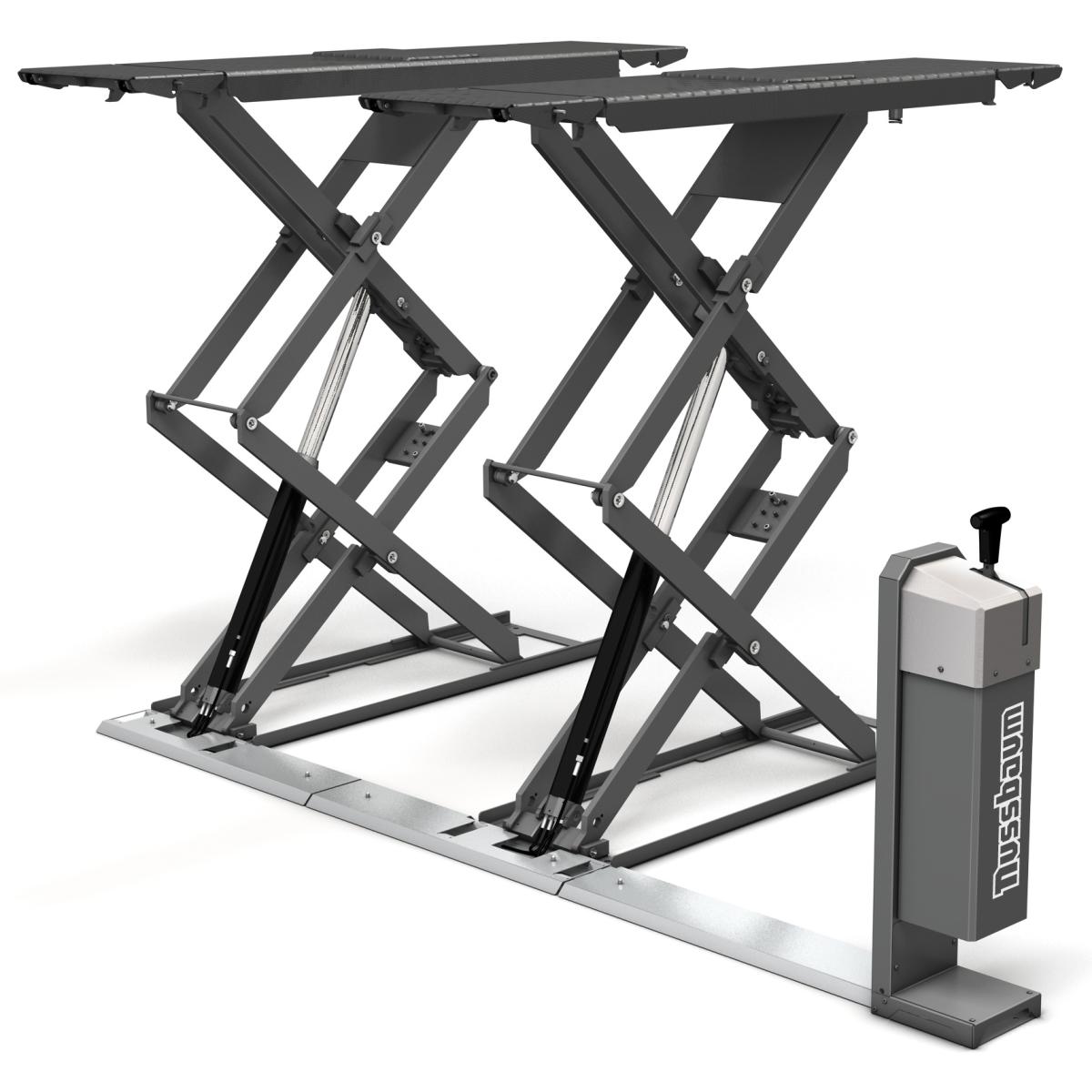

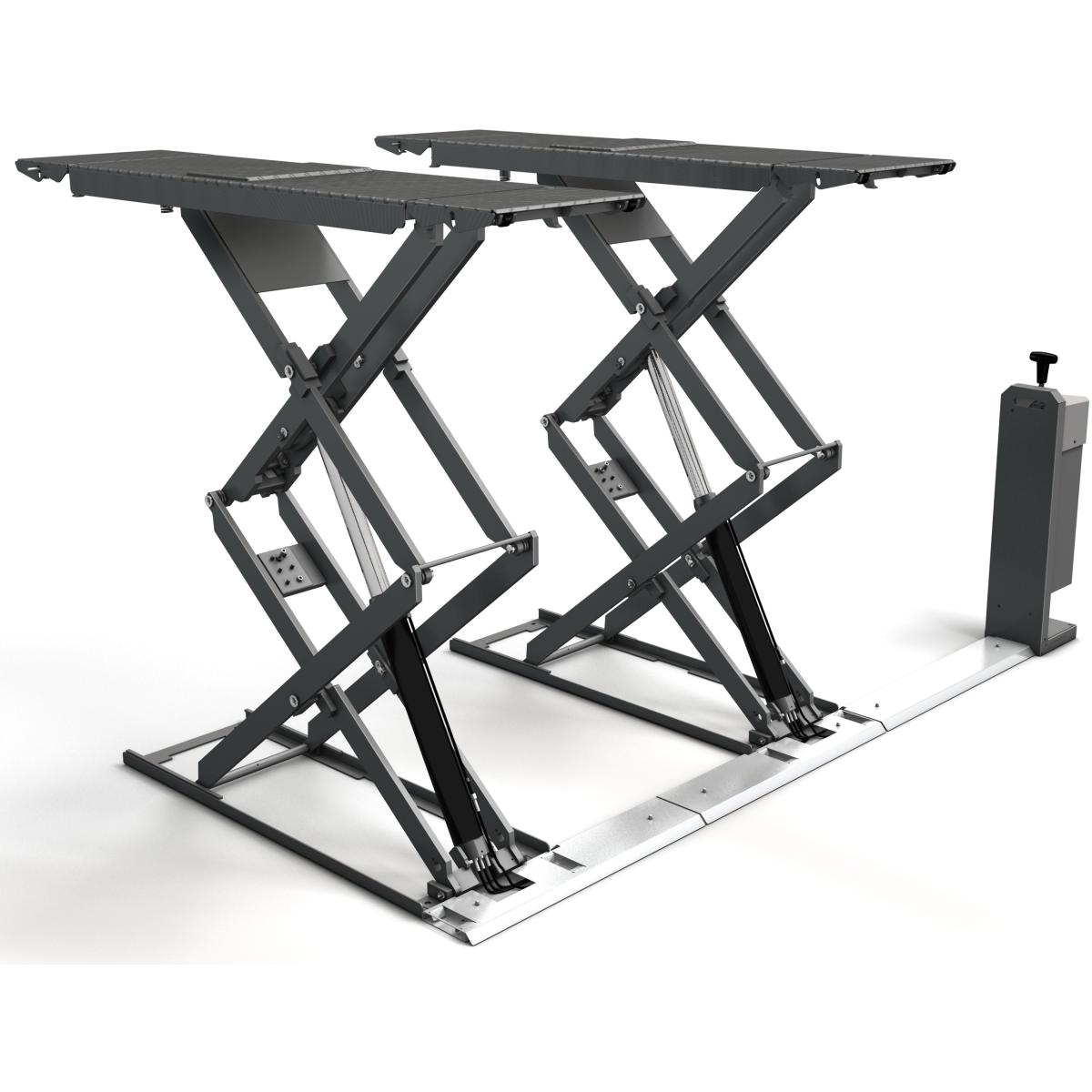

JUMBO LIFT 3500 HFC inground

Fast, flexible and always ready. A flexible double scissor lift with kg load capacity, suitable for a variety of jobs and vehicles, from cars to SUVs to lowered vehicles. Durable and safe, thanks to the best technology on the market today: the patented HyperFlow® Compact hydraulic system.

6 reasons why the JUMBO LIFT 3500 HFC inground is low-maintenance:

With its compact suboil motor and high-quality steel construction, the JUMBO LIFT 3500 HFC inground is low-maintenance and durable. The synchronisation is automatically controlled during every full lifting operation. Due to the redundant hydraulic system, the JUMBO LIFT 3500 HFC inground requires no safety catch. The JUMBO LIFT 3500 HFC inground is almost completely maintenance-free without electrical and pneumatic parts and without a mechanical safety latch. Lubricating nipples on all bolts allow smooth operation for a long time.

• Capacity: kg
• Lifting height of mm
• Extremely flat construction: Drive-on height of only mm
• Length-adjustable platform - Drive-on ramps can be locked and unlocked by one-hand operation
• Flexible assembly: Adjustable width, no compressed air access required
• 200 mm narrower platform: platform width inside and outside reduced. 100mm more space under the car
• 360° access
• Can also be installed flush with the floor
• triple guaranteed quality: power unit, hydraulic cylinder and the complete lifting platform are tested before shipment
• Developed and manufactured in Germany

With the "Nussbaum Commander" we are the only manufacturer of lifts worldwide that can offer you a precise, variable lowering speed. The Nussbaum Commander enables sensitive lowering and allows the user to change and correct positions in no time at all, all with maximum safety. AttributeShortCode,attribute=Title] is not only safe, but also exceptionally flexible and can be installed in different installation widths as required.

The JUMBO LIFT 3500 HFC inground does not require any compressed air supply. The low power consumption, the constant automatic compensation of the hydraulic circuits by the HyperFlow® Compact System and the low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The "Nussbaum Commander" operating lever is mounted on the unit integrated in a sound-insulating metal housing. The control unit is connected to the lift only by the hydraulic hoses and can be positioned freely around the lift. The hydraulic hoses can be mounted on the workshop floor or in a protective metal housing on the floor as required. The double shears are welded in Nussbaum's own state-of-the-art welding machines, shot-peened and then powder-coated. Your lift is thus protected against dirt and weather in the long term.

Lieferumfang

Hebebühne mit pulverbeschichteter Direktaufnahme, Bodenbleche verzinkt, CE-STOP, Kompaktes Unterölaggregat, Aufstellung Auffahrrichtung links oder rechts möglich, Länge der Hydraulikleitungen 1 m, 1 Satz = 4 Stück superduktile Polymerauflagen 50 x 150 x 3

Bauseitige Leistungen

Fundament (min. 160mm / mit Qualität min. C20/25), 12 Dübel BM10-15/70/40, (abhängig vom Fundament, siehe Prüfbuch), Hydrauliköl HLP ISO 32, Füllmenge ca. 13 Liter, Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Entladung
