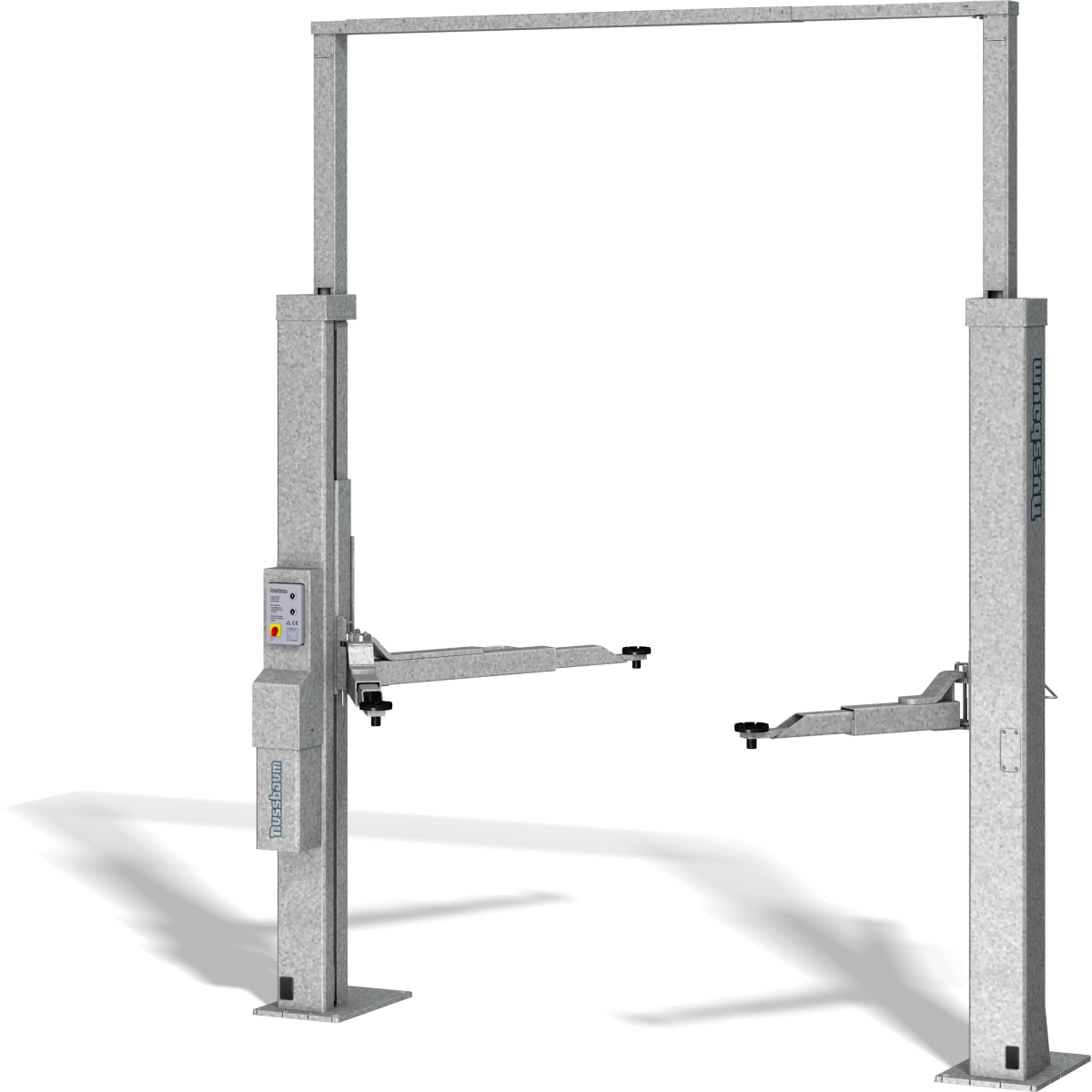

Power Lift HL 2.40 NT W Standard

The hot-dip galvanized hydraulic 2 post lift Power Lift HL 2.40 NT W Standard with a load capacity of 4000 kg and asymmetrical telescopic arms is a version of our HL series specially developed for washing bays. With the fast lifting and lowering times as well as a minimum maintenance effort (no synchronization ropes, no pulleys, no ratchet) it is the ideal lift for daily continuous use in the wet area of every car workshop.
The Power Lift HL 2.40 NT W Standard is equipped as standard with the patented Nussbaum NT and HyperFlow® technologies and has been developed and manufactured by Nussbaum since its ; market launch in 2014 in Kehl-Bodersweier in Baden-Württemberg .

• Lifting time: 26 seconds / Lowering time [AttributeShortCode,attribute=Lowering time,attributeid=62] seconds
• Load capacity: 4000 kg
• Adjustable in width and height (with optional riser pipe extension)
• Hot galvanized for perfect protection against water and dirt
• Recommended by Mercedes-Benz and BMW (for similar lifts HL 2.35 NT DT MB and HL 2.40 NT BMW)
• High quality: Every power unit and every hydraulic cylinder is tested before shipment
• Developed and manufactured in Germany

The HL NT series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifts Made in Germany. With specially developed, in-house technologies, we can provide you with an always perfect synchronisation without manual maintenance effort anbieten.

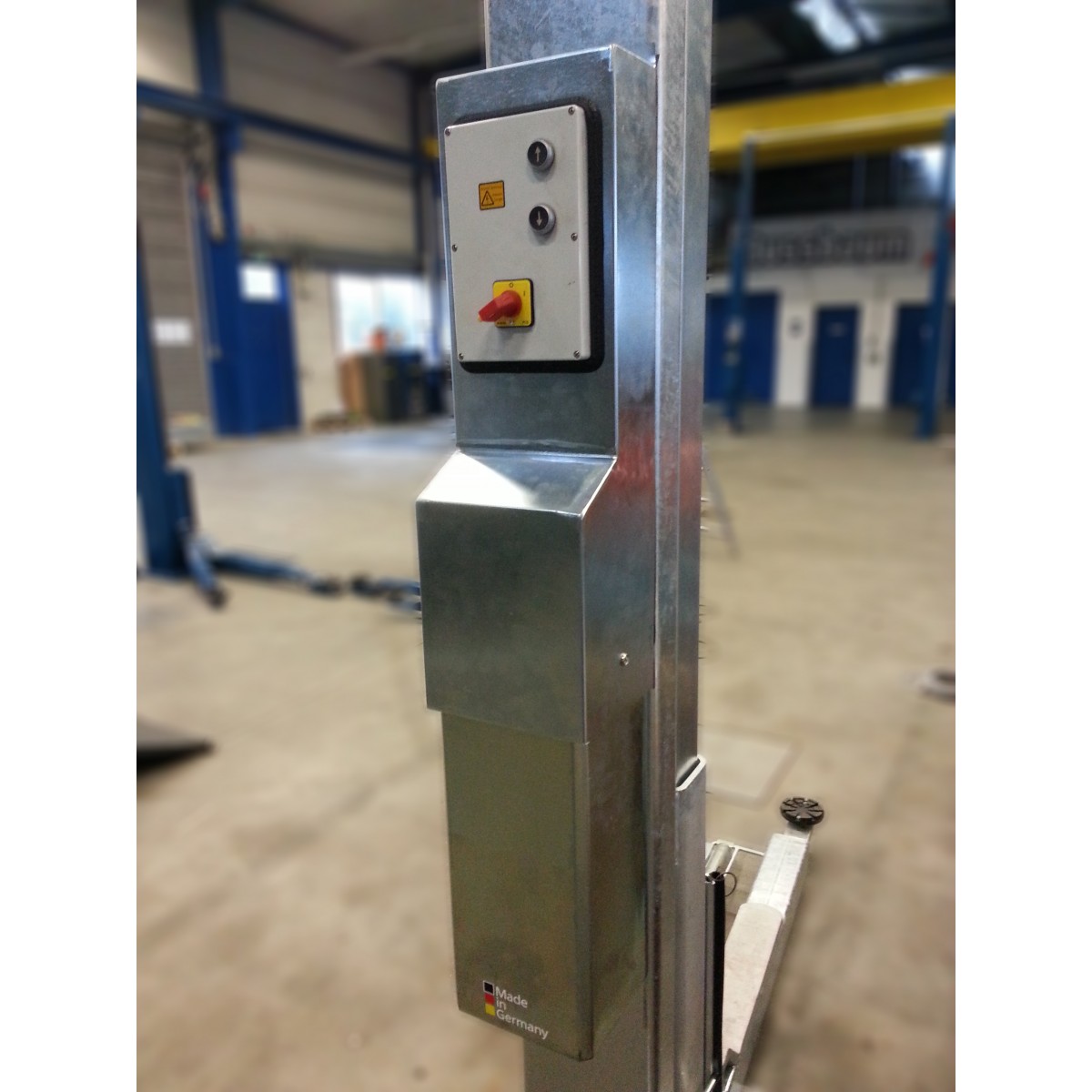

The hydraulic unit protected against dust and water jets (protection class IP 65) and the control element are mounted on the column under a metal cover and are easily accessible for maintenance. The columns and arms are perfectly protected against corrosion in the long term by hot-dip galvanizing.

The Power Lift HL 2.40 NT W Standard is not only safe, but also exceptionally flexible and can be adapted to a wide range of workshop sizes and configurations.

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy. The low power consumption, the consistent automatic compensation of the hydraulic circuits by the HyperFlow® system and low maintenance costs, also thanks to the reduced number of moving parts, reduce running costs.

Lieferumfang

Hebebühne mit asymmetrischen, teleskopierbaren Tragarmen, vier im Tragarm fixierte Drehteller, Energie-Set: E-Set (230 V/ Druckluft) in der Bediensäule integriert

Bauseitige Leistungen

Fundamentstärke 200mm C20/25 normale Bewehrung, 16 Dübel BM12-20/80/40 (abhängig vom Fundament, siehe Prüfbuch), Elektroanschluss 3 PH, N + PE, 400 V, 50 Hz, Absicherung 16 Amp. träge, Luftanschluss für Energie-Set, Hydrauliköl HLP32 ca. 10l, Entladung
