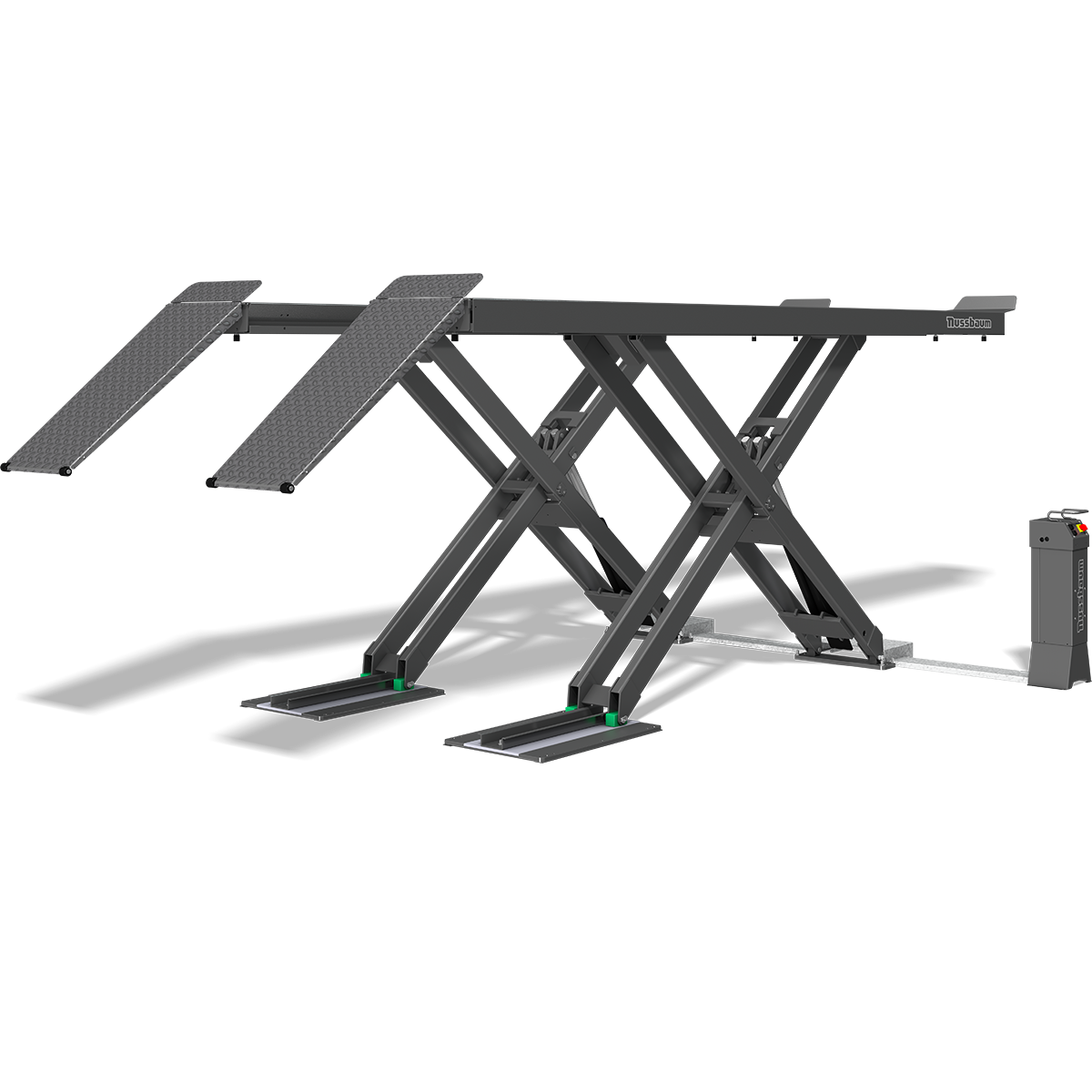

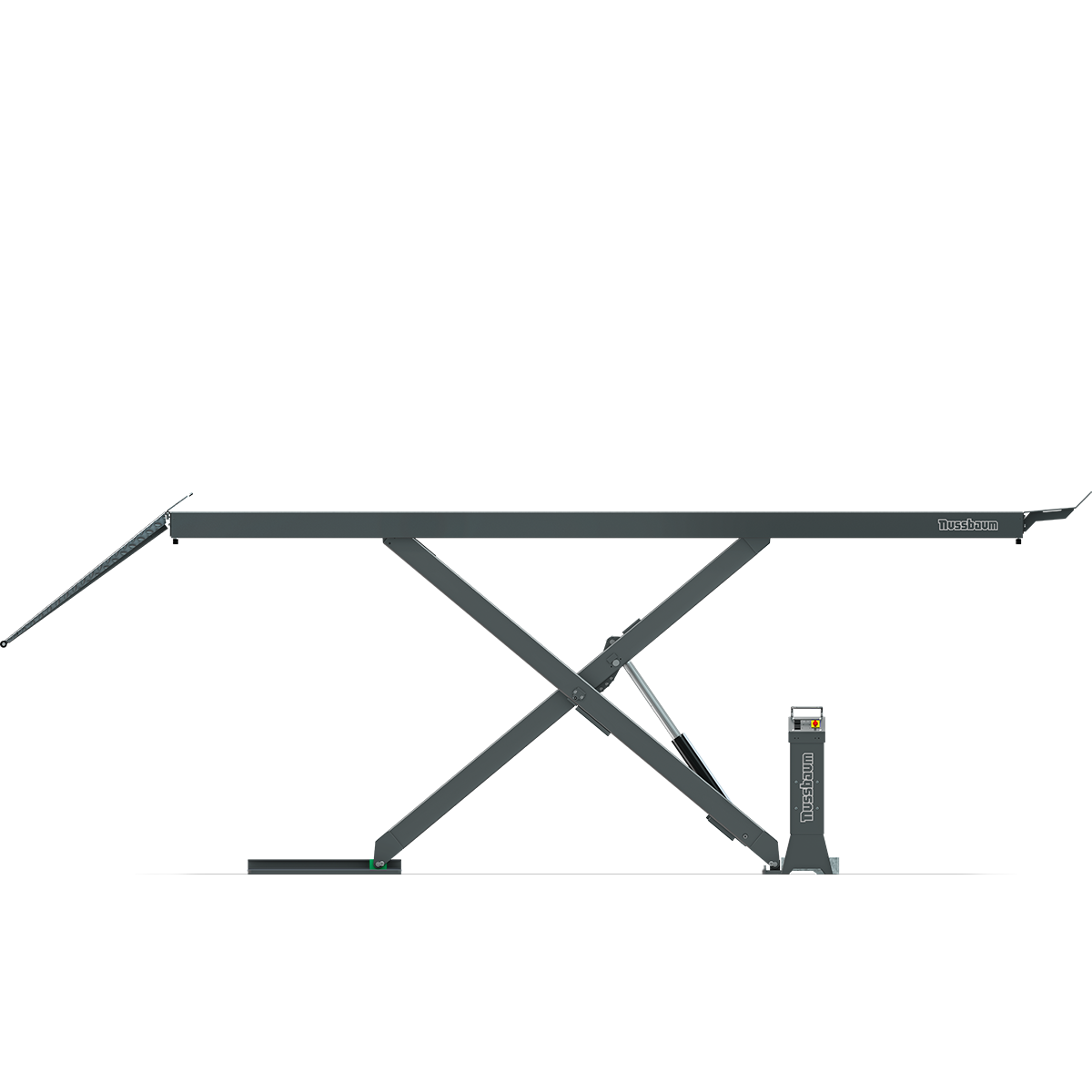

Uni Lift 5000 NT

The hydraulic scissor lift Uni Lift 5000 NT with a lifting capacity of 5500 kg is the perfect lift for check-in inspection, diagnosis, repairs and tyre service in the car workshop. With the fast lifting and lowering times, their small space requirement thanks to the low rails and the short ramps, their comfortable Lifting height of mm, the flexible installation width and the variable distance between the operating unit and the lifting platform, the Uni Lift 5000 NT the perfect companion for every car repair shop that needs a lift that meets all requirements. Nussbaum's patented NT technology controls perfect synchronisation of the four cylinders of the NT system, which are driven in two independent, redundant hydraulic circuits by a powerful and low-noise suboil motor.

The Uni Lift 5000 NT can be easily retrofitted with the JAX 2000, JAX 2600 or JAX 3200 axle lifts or with LED lighting on the rails, thus adapting to the development of your workshop for a long time to come.

• Lifting time: 35 Seconds / lowering time29 Seconds
• Capacity: 5500 kg
• Lifting height of mm
• Space-saving: Low rails and short drive-on ramps
• Flexible installation width, Distance between control unit and lift can be varied as required
• Retrofittable with axle lifts and lights
• Two redundant hydraulic circuits with NT technology
• 360° access
• Can also be installed flush with the floor: Uni Lift NT
• Developed and manufactured in Germany

All Nussbaum hydraulic scissor lifts are equipped with two redundant hydraulic circuits as standard: Nussbaum-s patented hydraulic technology NT. The control unit of the Uni Lift 5000 NT is equipped with a main switch and protected pushbuttons and can be positioned at various distances from the lift. The Uni Lift 5000 NT has no fixed connections between the platforms and can therefore be installed in different installation widths as required. Would you like to install your scissor lift flush with the floor? Click here to go to the inground version: Uni Lift NT

The low power consumption and low maintenance requirements, also thanks to the reduced number of moving parts, reduce running costs. The scissors and platforms are welded in Nussbaum's own state-of-the-art welding machines, shot-peened and then powder-coated grau Your lift is thus protected against dirt and weather in the long term.
